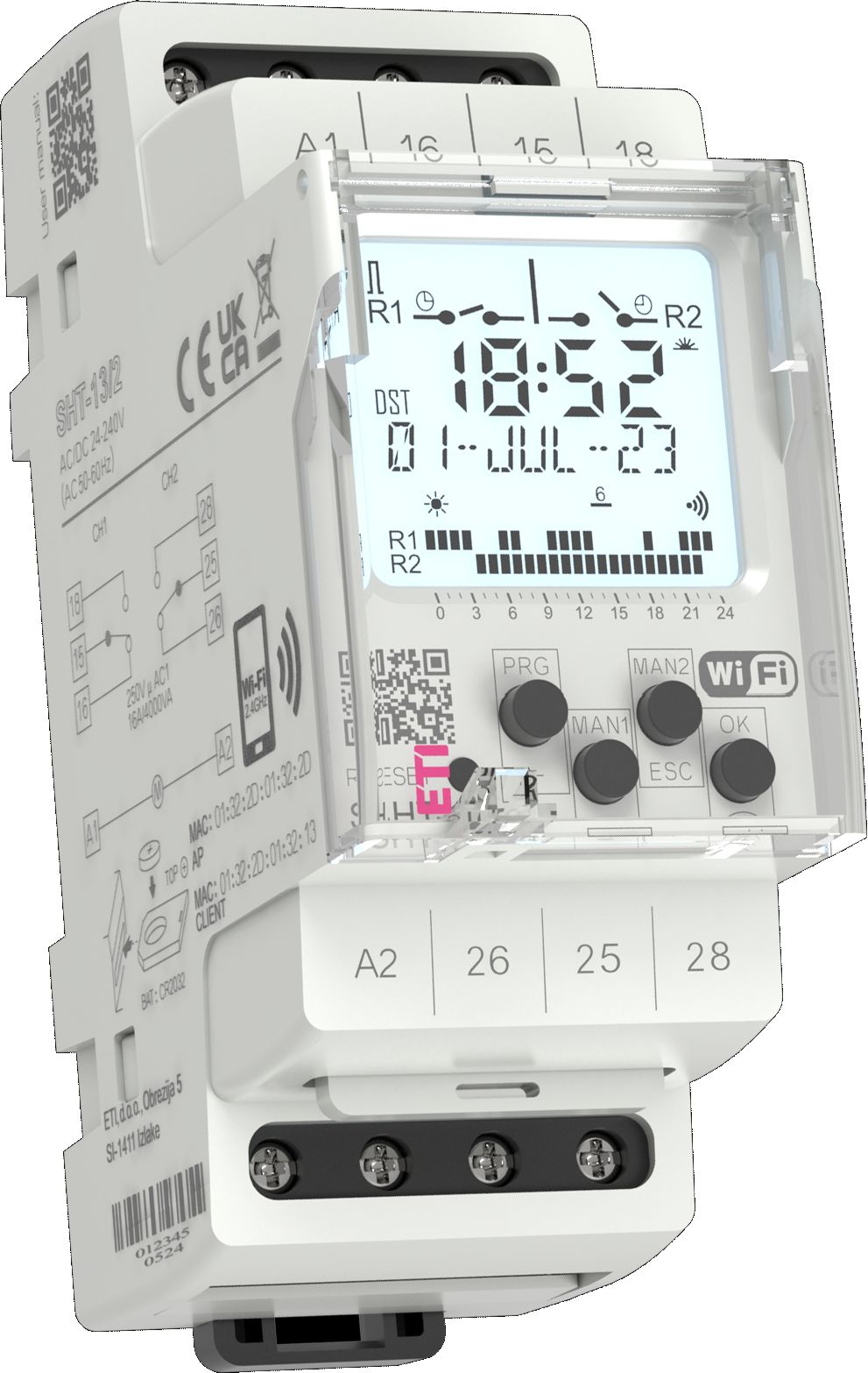

 All-in-One Digital Time Relay SHT-13/2 UNI

All-in-One Digital Time Relay SHT-13/2 UNI

 All-in-One Digital Time Relay SHT-13/2 UNI

Offering versatility with daily, weekly, yearly, and astronomical programming, it simplifies settings right from the first startup. With a built-in web server, setup is a breeze via Wi-Fi, and the ASTROnomic program allows for precision with manual or preset city coordinates.

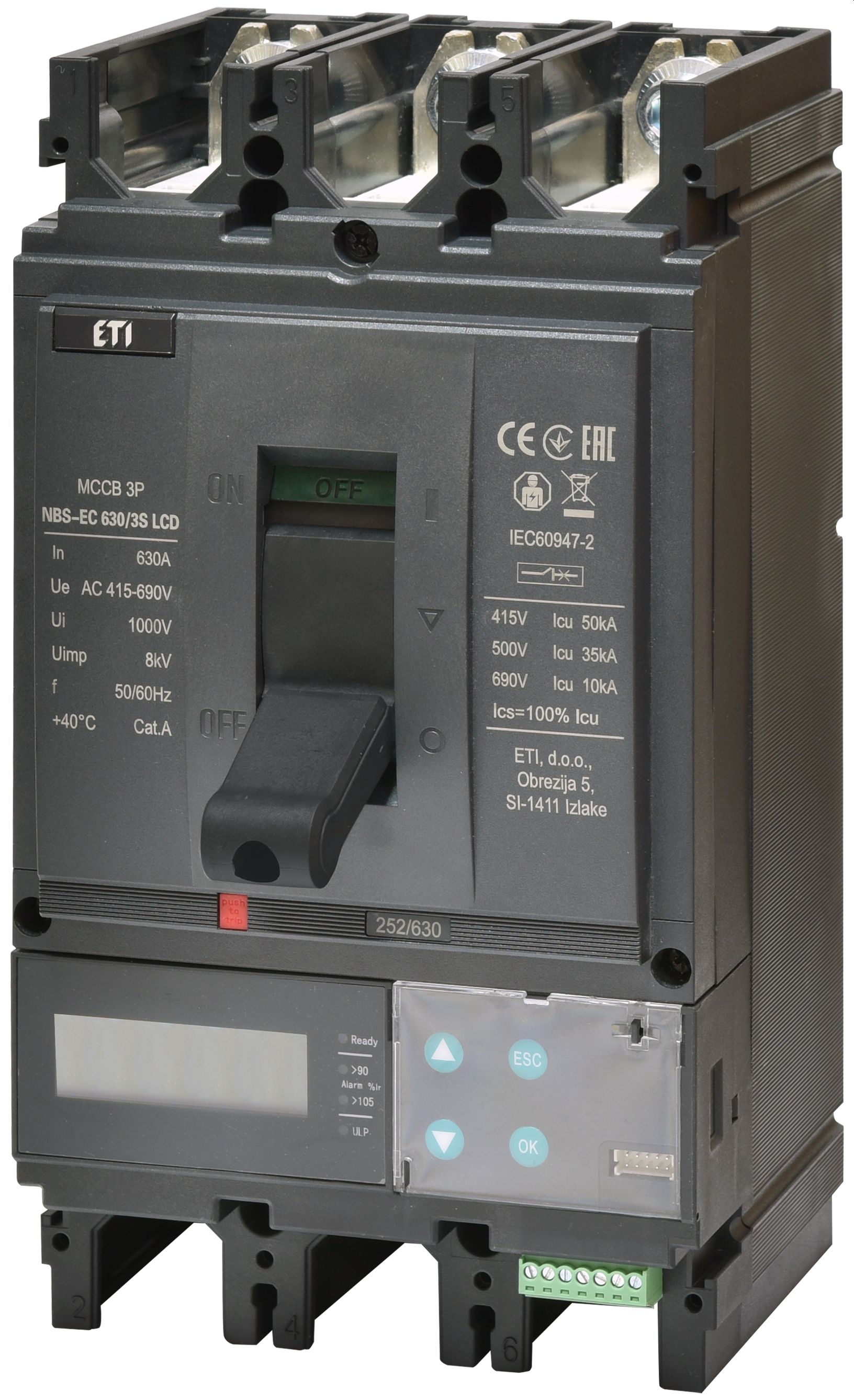

ETIBREAK NBS: The Next Generation of Moulded Case Circuit Breakers

ETIBREAK NBS: The Next Generation of Moulded Case Circuit Breakers

ETIBREAK NBS: The Next Generation of Moulded Case Circuit Breakers

NBS is a new generation of Moulded Case Circuit Breakers with rated currents between 20 and 1600A. Products are available in 3p and 4p version with wide range of accessories. Available are 3 different rated breaking capacities 36kA, 50kA and 85kA.







Infrared Remote Fuse Status Indication

Infrared Remote Fuse Status Indication

Introducing the Infrared Remote Status Indication for Cylindrical Fuses



We are proud to unveil the C IR Indication, a compact and energy-efficient solution designed for real-time monitoring of cylindrical fuse status. This innovative product eliminates the need for physical inspections, providing immediate responses to electrical faults and improving system reliability. The C IR Indication is the only remote monitoring solution available for CH 8x32, CH 10x38, and CH 10x85 fuse sizes on the market.

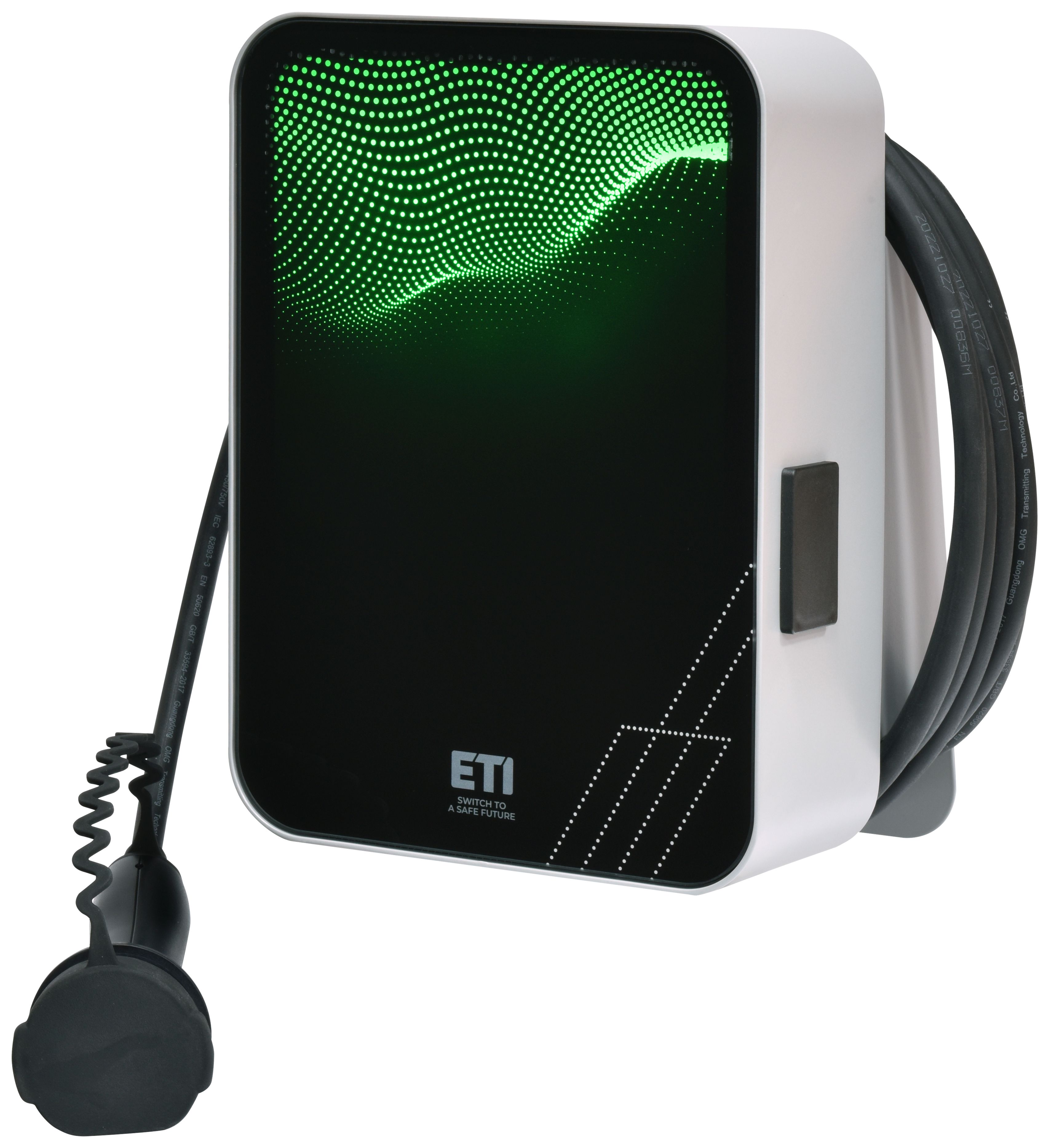

Introducing the EVC-HOME11: Your Ultimate Home EV Charging Station

Introducing the EVC-HOME11: Your Ultimate Home EV Charging Station

Introducing the EVC-HOME11: Your Ultimate Home EV Charging Station

We're excited to launch the EVC-HOME11, our newest home charging station designed to make electric vehicle charging both simple and efficient in comfort of your home according EN61851-1 MODE 3 (AC charging). Perfect for any electric vehicle owner looking to enhance their charging capabilities at home.

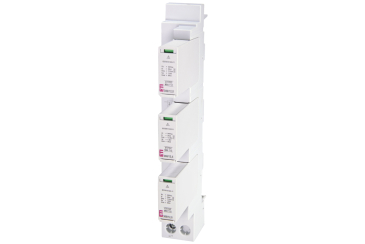

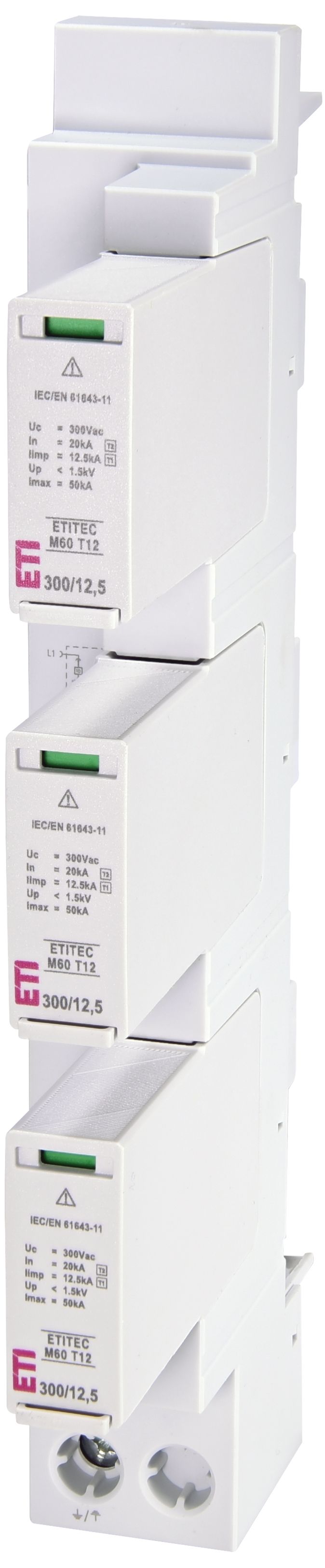

ETITEC Surge arresters M60 series

ETITEC Surge arresters M60 series

ETITEC Surge arresters M60 series

M60 Series surge arresters, engineered for direct mounting on 60 mm busbar systems with 5 or 10 mm thickness. These devices are ideal for industrial applications and other environments utilizing 60 mm busbar systems.





Programmable Staircase Switch CRM-47

Programmable Staircase Switch CRM-47

Programmable Staircase Switch CRM-47

Whether you're looking to enhance the safety of your stairways, improve energy efficiency in common areas, or add a level of sophistication to your lighting controls, the CRM-47 offers a comprehensive solution. Its programmability, coupled with advanced features like the zero-cross detection and surge current management, makes it an indispensable tool for modern, efficient buildings.

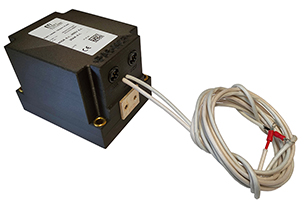

Triggy Fuse: A Technological Leap in EV Battery Protection

Triggy Fuse: A Technological Leap in EV Battery Protection

Advanced Hybrid Fuse Technology for Enhanced Electric Vehicle Safety



Triggy fuse is a protection device for the electric car battery pack. It is a hybrid between a classic fuse and a pyrotechnic switch. It combines all the positive technical properties of both components. It encompasses additional functionalities, such as internal tripping in case of critical overcurrent, and two inputs for external tripping (from an airbag or BMS).



Technical Development Journey

The concept of the Triggy Fuse was initiated in 2017 at ETI, in a collaborative effort with a leading electric car manufacturer. Initial tests showed that the technical requirements of an electric car cannot be solved with a "classic" fuse, which has a fixed current-time characteristic and cannot be interrupted by an external signal. Therefore our team had to find another solution, which was to upgrade it with a pyrotechnic switch. Originating from the space industry during the Gemini and Apollo programs, these switches have evolved to meet the high-voltage requirements of modern EVs as they can withstand voltages up to 1000V d.c.

Innovative Design and Patent Protection

The combination of the two components gives us a product that integrates the positive features of both and that is the Triggy fuse. Designed to support up to 800V d.c. and 600A, the Triggy Fuse has two inputs for ECU and BMS signal and its own overcurrent tripping with REED contact. This dual-triggering approach, coupled with its high-current handling capacity, positions the Triggy Fuse as a superior alternative to traditional protection devices in electric vehicle applications.

Triggy fuse is protected by a family of 7 patents.

Endorsement by Industry Experts

It is best for the customer to introduce the innovation. And that's what Mate Rimac did in the case of the Triggy fuse. At the link below you can watch a video that introduces Triggy fuse in more detail between 53:55 and 54:40.

Most important for the meaning of this innovation are his words at the end of the presentation: "Something like Triggy Fuse didn't even exist on the market a couple of years ago." Which is absolutely true.

Conclusion

The Triggy Fuse is more than just an advancement in EV protection; it's a strategic response to the complex safety challenges faced by modern electric vehicles. For OEMs and EV manufacturers seeking reliable, high-performance protection solutions, the Triggy Fuse offers an unparalleled combination of safety, reliability, and technological innovation.

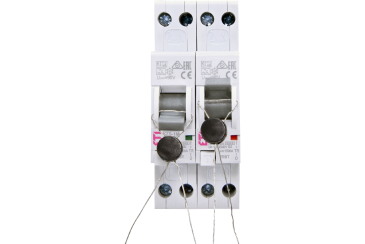

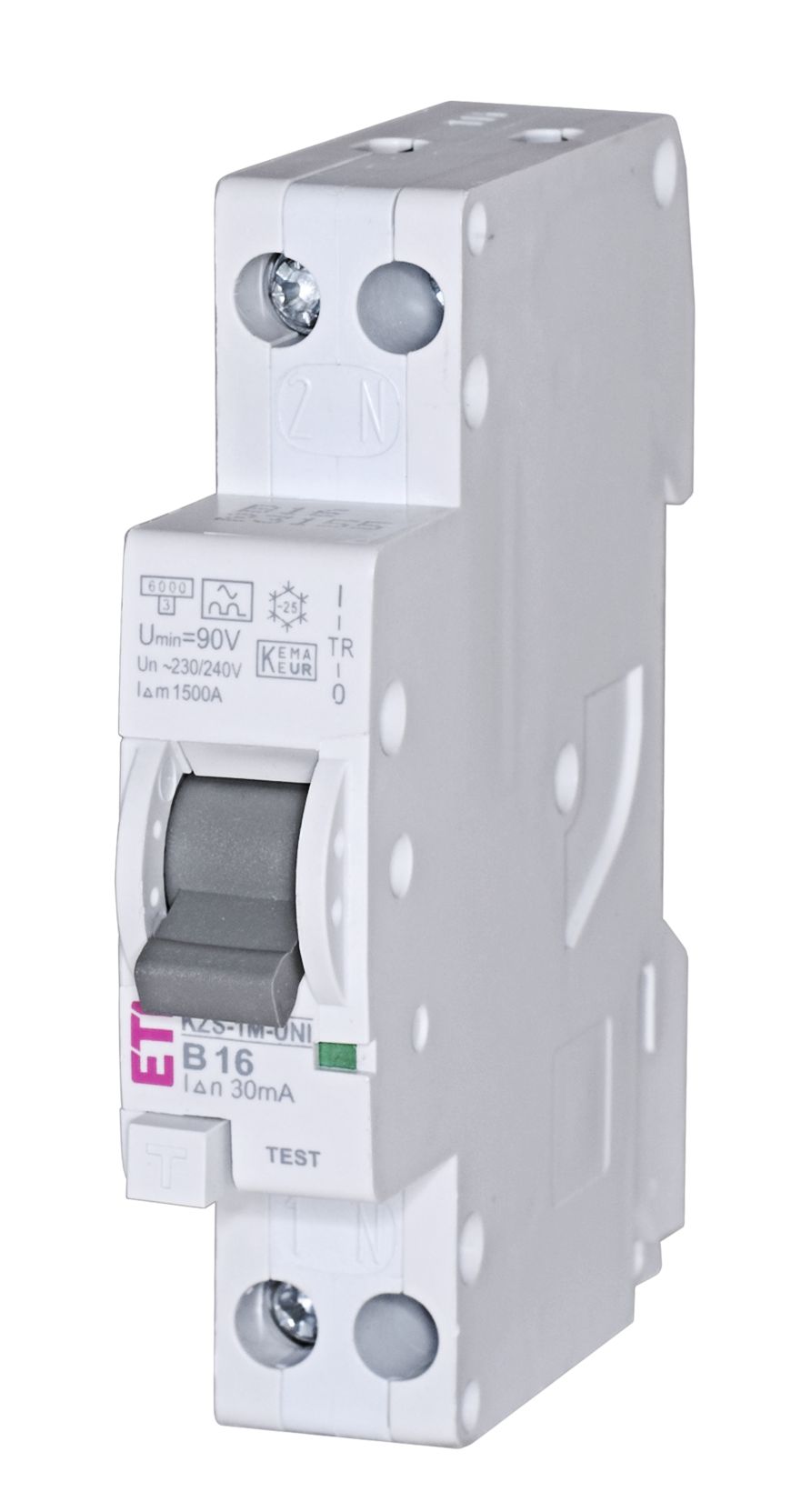

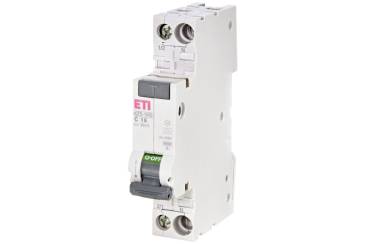

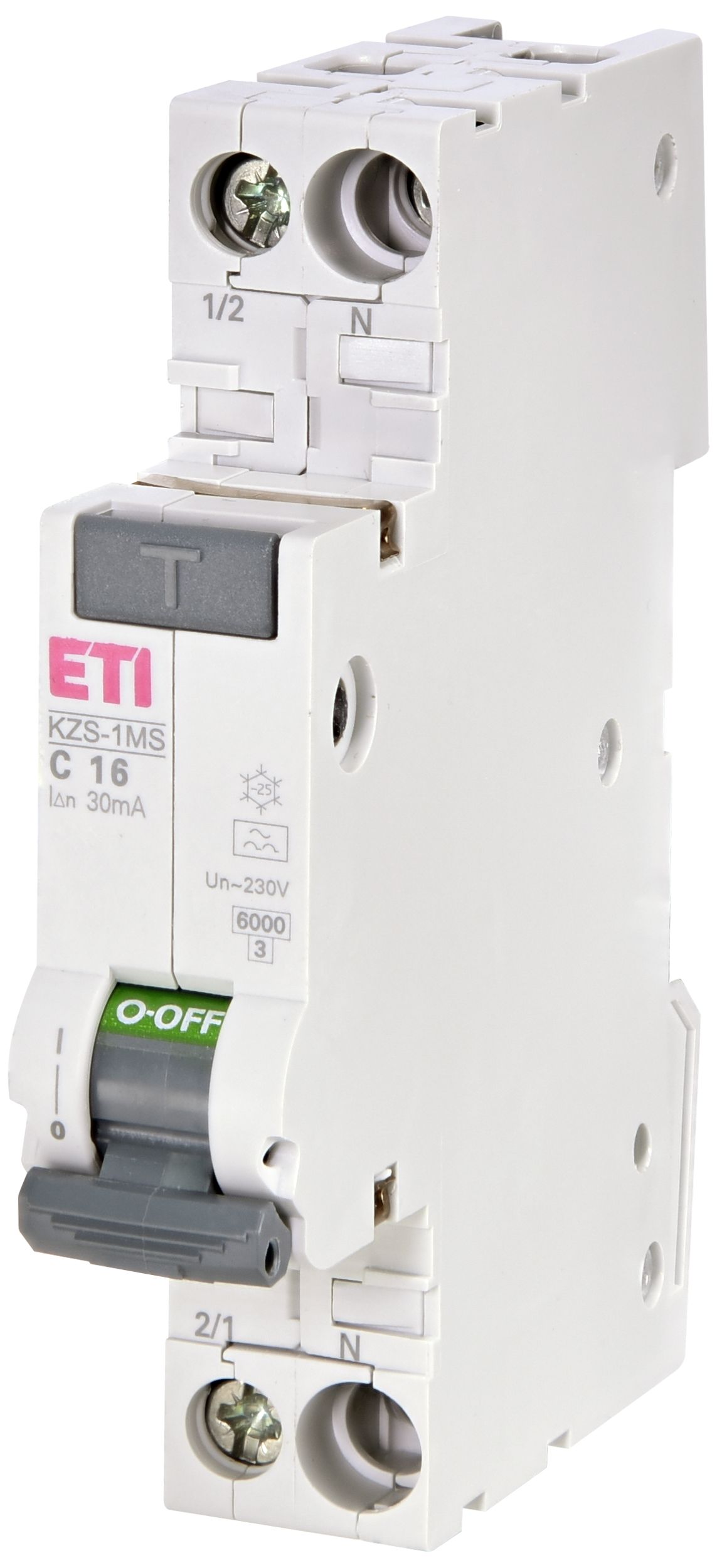

RCBO KZS 1M UNI

RCBO KZS 1M UNI

RCBO KZS 1M UNI



Introducing the KZS-1M UNI - a versatile solution for electrical installations. With the option to connect the electrical supply from the top or bottom, it offers flexibility to suit various setups.







KZS 1M UNI combining an MCB and an RCCB in a single 1-module unit, with active and neutral pole switching. This innovative solution prioritizes safety for both individuals and electrical systems, finding applications in residential, commercial, and industrial installations. Operating reliably down to -35°C, it offers unparalleled versatility. Plus, with the option to connect the electrical supply from either the top or bottom, installation becomes a breeze. The reset version features a clear toggle position indicator, ensuring transparency in system shutdowns and minimizing user errors.





Attention to details:



 The option of sealing in the ˝ON˝ or ˝OFF˝ position

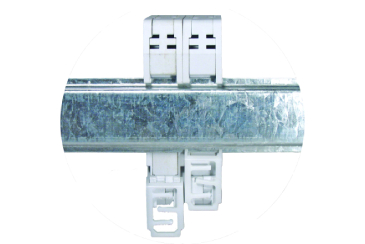

Easy removal from existing busbar system
Seperate indication of contacts' real state (independent of the toggle position) ensures additiona user safety

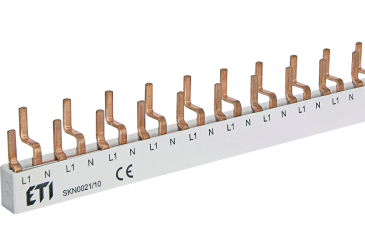

 The possibility of connectiong to SKN-type busbars





 Catalogue

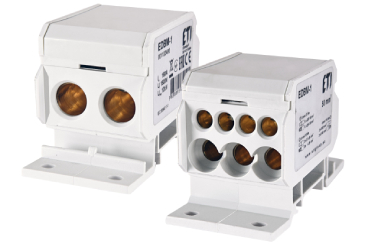

DIN Rail Distribution Blocks EDBM

DIN Rail Distribution Blocks EDBM

DIN Rail Distribution Blocks EDBM



DIN rail distribution blocks EDBM, are used in low-voltage (LV) switchboards for efficient and organized distribution of electric energy. Easy mounting, high insulation voltage, and compliance with IEC standards ensure optimal performance.



ETI Prostik's High-Quality Photovoltaic DC Combiner Boxes with Advanced Surge Protection

ETI Prostik's High-Quality Photovoltaic DC Combiner Boxes with Advanced Surge Protection

ETI Prostik Unveils High-Quality Photovoltaic DC Combiner Boxes with Advanced Surge Protection



ETI Prostik,'s DC combiner boxes are designed to streamline the integration of solar panels into a single output, significantly simplifying the installation process of PV systems. What sets these combiner boxes apart is the integrated surge protection feature, which safeguards the solar panels and other electrical components from potential damage caused by voltage spikes and surges
